The X870 Steel Legend WiFi ATX motherboard delivers cutting-edge performance with AMD X870 chipset and AM5 socket support. It offers DDR5 memory compatibility up to 256GB, PCIe 5.0, and multiple M.2 slots for ultra-fast storage. With Wi-Fi 7, 2.5Gb LAN, 7.1 HD audio, and USB 4.0, it’s optimized for high-performance gaming builds.

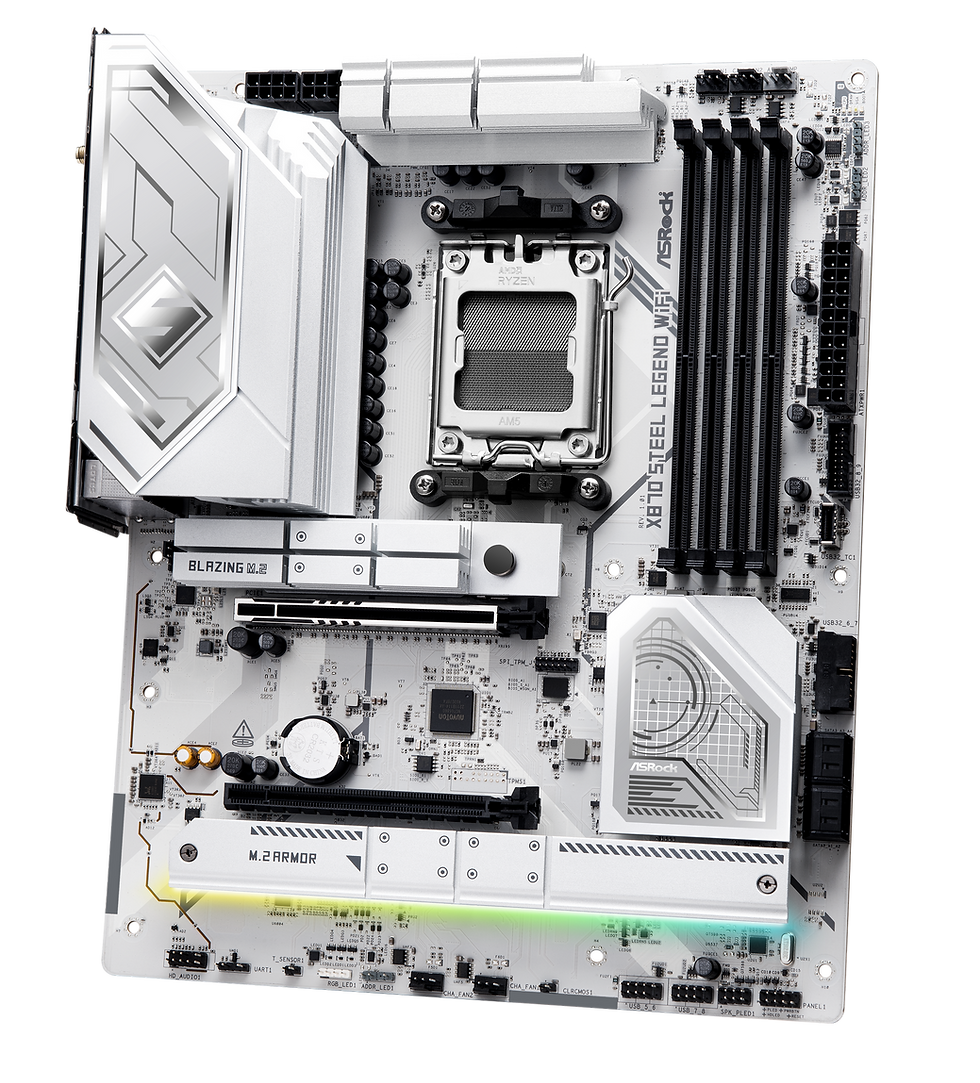

ASRock X870 Steel Legend WiFi motherboard, socket AM5, AMD X870, ATX, DDR5
SKU: MBAR-488
€365.00Price
Sales Tax Included
Only 1 left in stock
Specifications
|
Core Specifications |
|
| Edition | X870 Steel Legend WiFi |
| Form Factor | ATX |
| CPU Socket | AM5 |
| Chipset | AMD X870 |
|
RAM Memory Support |
|
| Memory Type | DDR5 |
| Memory Channel | Dual (2) |
| Memory Type (ECC) | ECC/Non-ECC |
| Memory Type (R/U) | UDIMM (Unbuffered) |
|
Memory Speed (Mhz) |
|
| Max. Memory Capacity | 256GB |
| Audio | |
| Audio | 7.1 Channel HD Audio |
|
Graphics Support |
|
| Primary GPU Interface | PCIe 5.0 (x16) |
| NVIDIA SLI Support | N/A |
| AMD CrossFire Support | N/A |
|
Integrated Graphics |
|
| On-Board Graphics Connectors | HDMI 2.1 USB 4.0 |
|
Internal Connectivity |
|
| Expansion Slots | 1 x M.2 Key E (Supports Wi-Fi modules) 1 x M.2, 22-30/42/60/80, PCIe Gen4x4 1 x M.2, 22-60/80, PCIe Gen4x4 1 x M.2, 22-80, PCIe Gen5x4 1 x PCIe 4.0 x16 (x4 Bandwidth) 1 x PCIe 5.0 x16 4 x SATA 6GB/s |
| SATA Support | SATA3 / M.2 |
|
RAID Support via |
|
| Storage Mode Support | RAID 0 RAID 1 RAID 10 |
| Internal I/O | 1 x 24-pin (Power) 1 x 4-pin AIO_PUMP Connector 3 x 4-pin CHA_FAN connector 2 x 4-pin CPU Fan Connector 2 x 8-pin (Power) 3 x Addressable Gen 2 Header 1 x Front Panel Audio Header 3 x M.2 1 x Power LED / Speaker Header 1 x RGB LED connector 2 x USB 2.0 Header 2 x USB 3.2 Gen1 Header 1 x USB 3.2 Gen2 Type-C Front Panel Header |
|
External Connectivity |
|
| Network Interface Type | 802.11be Wi-Fi 7 LAN Wired 2.5 Gigabit LAN |
| Network Chip/Modules | 1 x 802.11be WiFi 7 1 x Dragon RTL8125BG (2.5GbE LAN) |
| Rear I/O Connectors | 1 x BIOS Flashback Button 1 x HDMI 2.1 1 x Line Out 1 x Mic-In 1 x RJ-45 1 x S/PDIF-Out (Optical) 4 x USB 2.0 3 x USB 3.2 Gen1 Type-A 2 x USB 3.2 Gen2 Type-A 2 x USB 4.0 Type-C 2 x WiFi Antenna connectors |
|
Additional Specifications |
|
| Water Cooled | No |
| Cooling | Passive Heatsinks |
| QPI Speed | N/A |
| Board Dimensions | 305 x 244 mm |
