Unleash the power of the NVIDIA GeForce RTX 5070 Ti, a powerhouse GPU crafted on a 5 nm process with an impressive 8960 shader units and advanced technologies like 280 Tensor cores and 70 ray tracing cores. Boasting 16GB of cutting-edge GDDR7 memory and a wide 256-bit interface, this card delivers a staggering 896 GB/s bandwidth. It features a robust triple-fan setup for optimal cooling, supports NVIDIA G-SYNC, and operates at frequencies up to 2482 MHz boost clock. The card's 300 mm length, 41 mm width, and 116 mm height require 2 slots and a single 16-pin PCIe 5.0 connector, offering high-end performance without RGB distractions, making it perfect for gamers and professionals seeking top-tier graphics processing power.

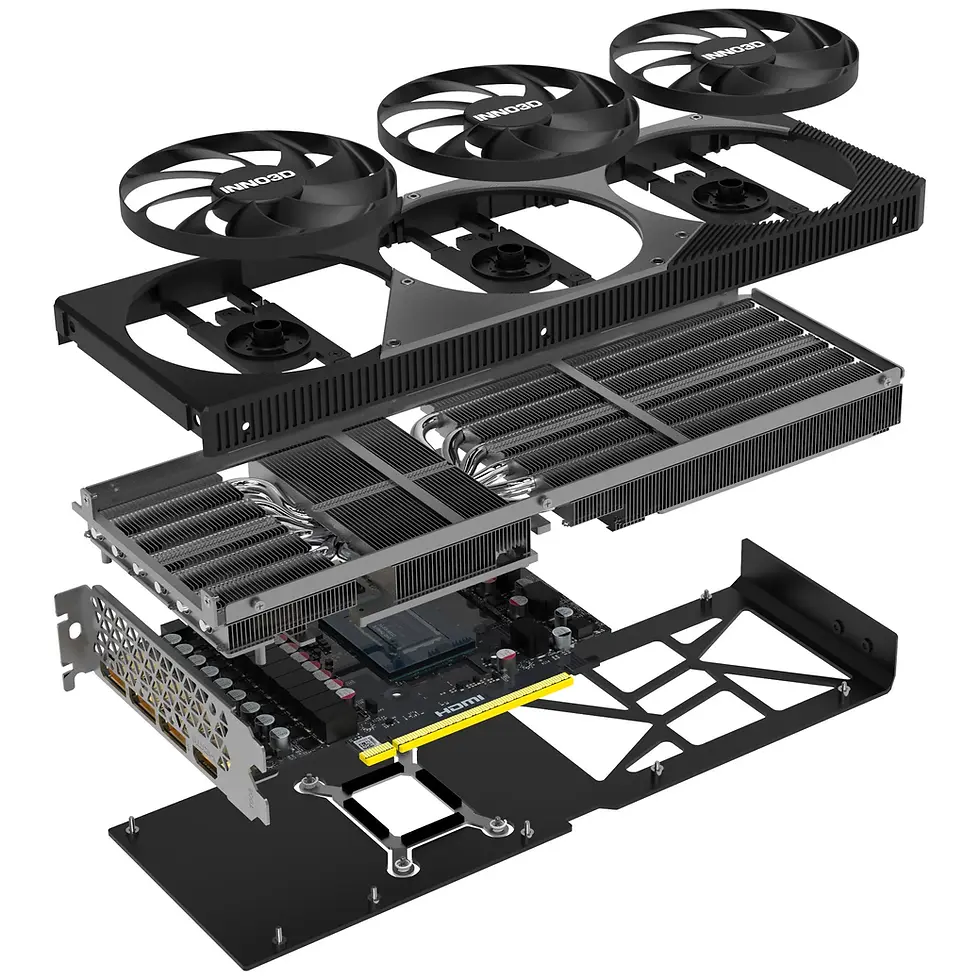

INNO3D GeForce RTX 5070 Ti X3 OC, 16384 MB GDDR7
Specification
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 300 mm |
| Width | 41 mm |
| Height | 116 mm |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| GPU Model |
NVIDIA GeForce RTX 5070 Ti |
| GPU Series Name |
NVIDIA GeForce RTX 5070 Ti |
| Graphics Chip | GB203-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 8960 |
| Tensor Cores | 280 |
| Raytracing Cores / Ray Acceleratorss | 70 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 896 |
| GPU Effective Memory Clock (MHz) | 2209 |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2300 MHz |
| Max. GPU Clock (Boost) | 2482 MHz |
| Max. Memory Clock | 28000 MHz |
| Cooling | |
| Number of GPU Fans | 3 |
| Water Cooling | |
| Watercooling | No |
| Internal Ports | |
| Required Power Connectors |
16-pin PCIe 5.0 - 12VHPWR (1x) |
| External Ports | |
| Display Connectors |
Display Port (3x), HDMI (1x) |
| Back Connect | |
| Back Connect | No |
| Expansion Slots | |
| Expansion Slots Required | 2 Slots |
|
Standards / Specifications |
|
| Adaptive Sync Technology (G-SYNC / FreeSync) |
NVIDIA G-SYNC |
| Lighting | |
| Lighting / RGB | No |
